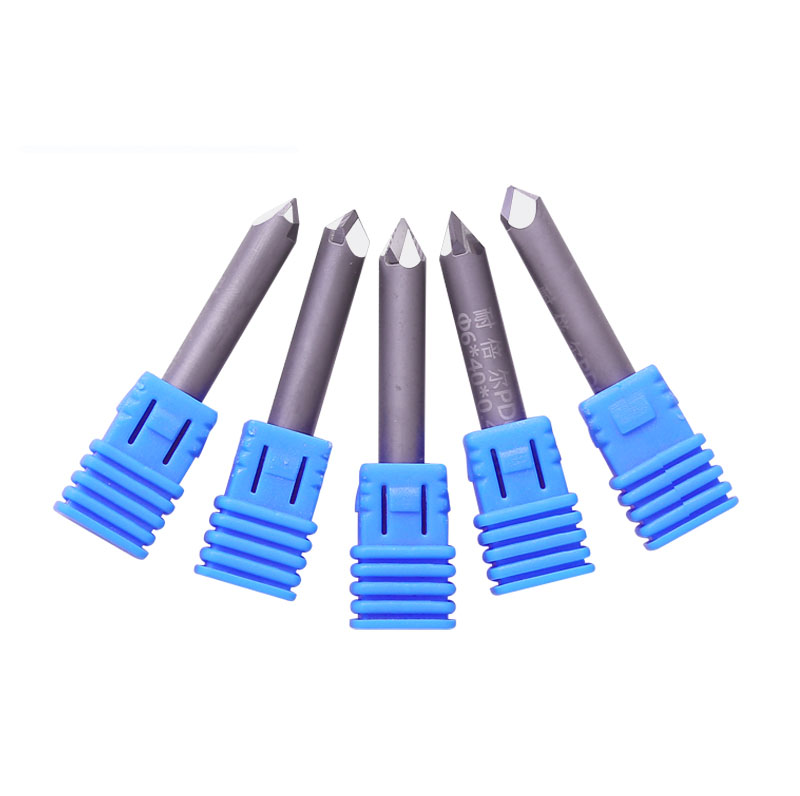

Polycrystalline diamond tool for carving words PCD CNC Carving Tools
1. The PCD cutter is used to engrave characters with smooth edges.
2. The size of the engraving characters ranges from 3cm to 8cm
3. Fast engraving speed and long service life
4. Its maximum engraving depth can reach 4mm.
Mainly used for natural granite, marble, stone, glass, tile, black jade, Mongolia.
SHK :means the diameter of the tool hand
CED: cutting edge diameter;
CEL: cutting edge length;
VOL:total length
| Model | size | Shk(mm) | Full angle | CED | Ovl(mm) |
| NB-9004 | Φ6*40*90°*0.4 | 6.0mm | 90° | 0.40 | 40 |
| NB-7004 | Φ6*40*70°*0.4 | 6.0mm | 70° | 0.40 | 40 |
| NB-9006 | Φ6*40*90°*0.6 | 6.0mm | 90° | 0.60 | 40 |
| NB-9008 | Φ6*40*90°*0.8 | 6.0mm | 90° | 0.80 | 40 |
| NB-9010 | Φ6*40*90°*1.0 | 6.0mm | 90° | 1.00 | 40 |
| NB-7006 | Φ6*40*70°*0.6 | 6.0mm | 70° | 0.60 | 40 |
| NB-7008 | Φ6*40*70°*0.8 | 6.0mm | 70° | 0.80 | 40 |
| NB-7010 | Φ6*40*70°*1.0 | 6.0mm | 80° | 1.00 | 40 |
| NB-8004 | Φ6*40*80°*0.4 | 6.0mm | 80° | 0.40 | 40 |
| NB-12004 | Φ6*40*120°*0.4 | 6.0mm | 120° | 0.40 | 40 |
Applications pcd carving tool:
PCD Stone Engraving Cutters are mainly used for sculpture, cross inscription and character engraving on natural marble, granite, jade, milestone, ceramic tiles, glass, acrylic and metal materials. and PCD Flat Bottom Engraving cutter max tip width is 1.5mm, and max engraving depth is 5.5mm. Engraving knife with thinner tip is mainly used for sculpturing.
Engineering Features pcd carving:
PCD Stone Engraving Cutters were approved and honored by customers both at home and abroad since its long service life, better abrasion resistance, edge sharpness performance, automatically surface roughness and stable quality.
