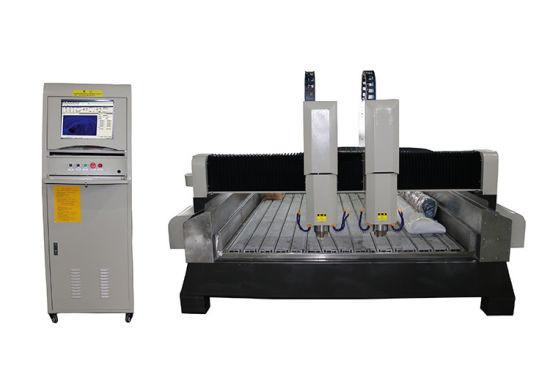

Double heads CNC stone engraving Machine for carving Marble Granite Stone
Parameters of STONE cnc router
| XYZ Working Area | 1800mm*2500mm*200mm |
| Precision | 0.01mm |
| Lathe structure | Seamless welded steel structure |
| XY Structure | Gear transmission |
| Z Structure | Taiwan TBI Ball screw, Taiwan Hiwin square Guide rail 20mm |
| Spindle | 5.5kw water cool spindle |
| Spindle speed | 0-18000mm/min, variable speed |
| Diameter of cutter | 3.175mm-12.7mm |
| Inverter | Fuling inverter |
| Motor and Driver | stepper motor450B,leadshine driver M860 |
| Worktable | By T lot |
| Command | G code (HPGL,U00,mmg,plt) |
| Working Voltage | AC220V/AC380V- Three Phase |
Features of STONE cnc router
1. Integral cast frame, solidity and stable.
2. Accuracy: Adopt Round Rail and imported high accuracy ball screw to ensure more stable
movement and high accuracy.
3. Appearance: Aluminum decorative appearance, beautiful design and then makes the whole
machine magnificently.
4.Spindle: Advanced water-cooling brushless spindle, low noise, more power, long-time mass
processing.
5.The three axes adopt dust protector; ensure the equipment with long service life.
6.Design: It adopt several kinds of electrical parts with good design to minimize the failure ratio.
7.Convenient operation: Advanced DSP digital control system, offline controller with USB interface,
continuation at stop point.
8.Multi-functions: It can support TYPE3/ ArtCAM/ Ucancam and several kinds of CAD/CAM
